Enjoy extra comfort: premium materials and charming details shape the interior – with Combi 6 heating, aluminium side walls and a low-entry step as standard. Optional extras include Isofix points and a T-hood window. Your cosy retreat with a smart storage concept.

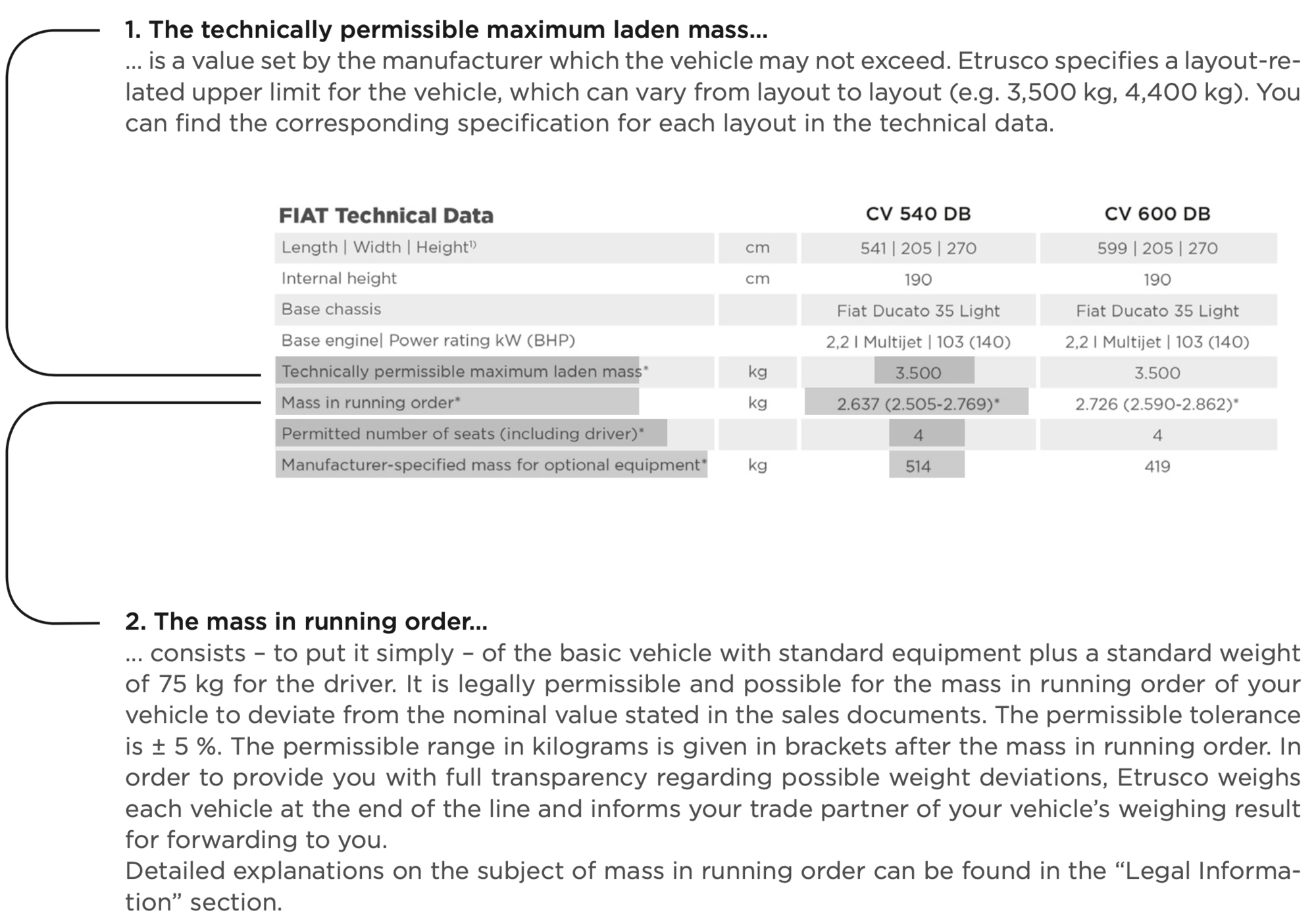

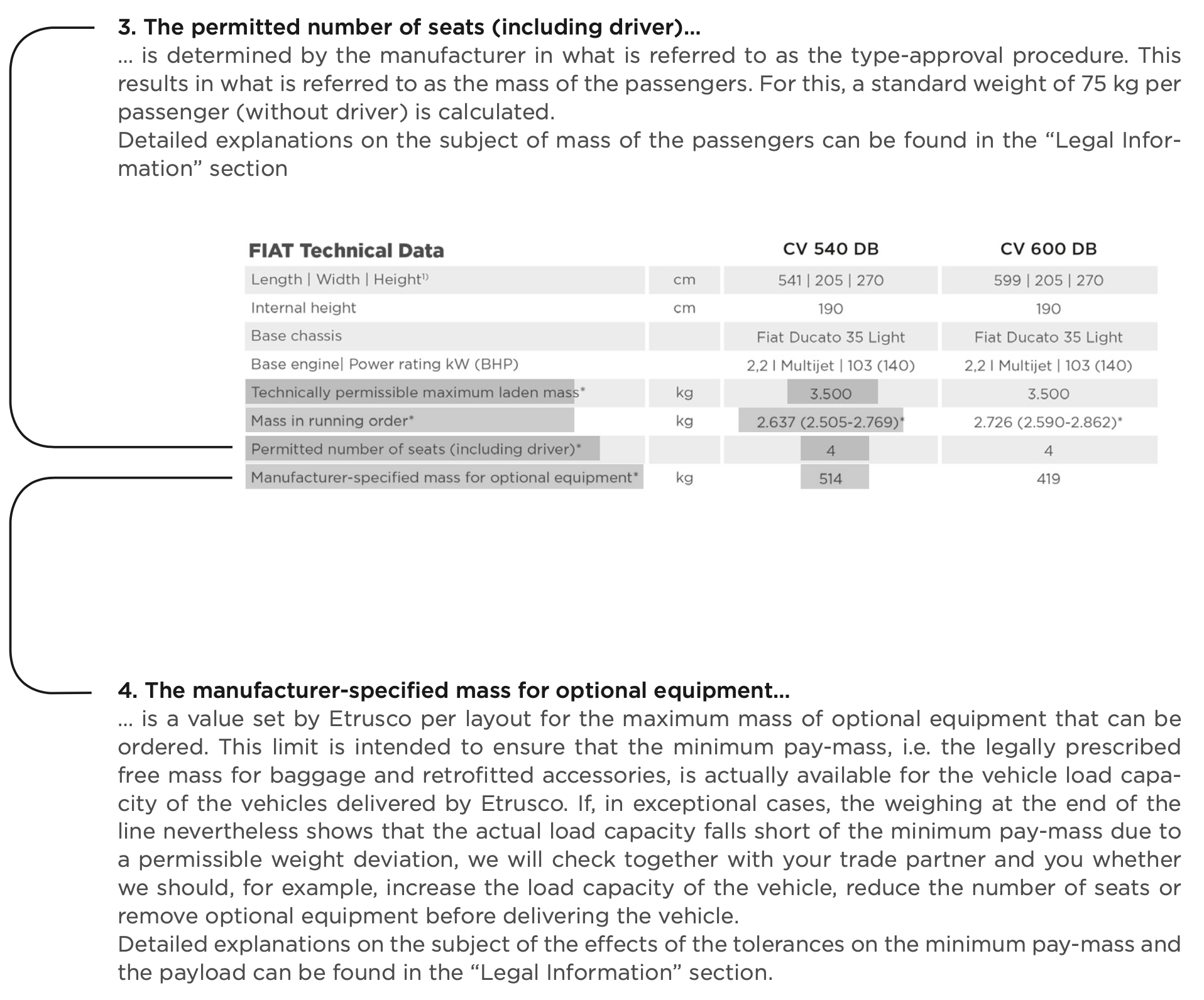

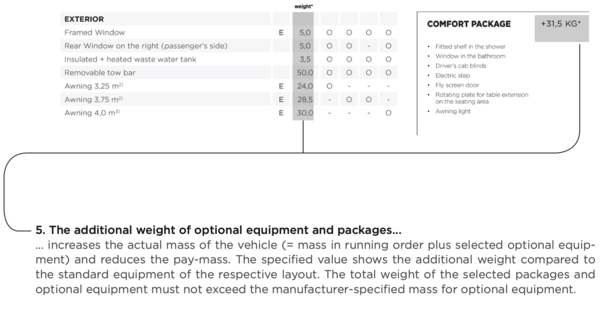

When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
| Pricea) | 67999 |
| Standard engine | 2,2l Mjet |
| kW (hp) | 103 (140) |
| Chassis | Fiat Ducato |
| Tyres | 225|75 R16CP |
| Length / Width / Height (cm) | 695 / 232 / 295 |
| Internal height (cm) | 210 |
| Wheel base (cm) | 380 |
| Light dimension storage flap | Storage flap W x H right / left (cm) | 95 x 110 / 75 x 80 |
| Mass in running order* (kg) | 2868 (2725 - 3011)* |
| Manufacturer-specified mass for optional equipment* (kg) | 267 |
| Technically permissible maximum laden mass* (kg) | 3500 |
| Technically permissible towing weight 12 % braked (unbraked) (kg) | 2000 (750) |
| Permitted number of seats (including driver)* | 4 |
| Fresh water tank capacity, total (fresh water tank at driving filling) | waste water tank (l) | 110 (20) | 90 |
| Power outlets 230 V | 3 |
| Power outlets 12 V | 1 |
| Sockets USB | 4 |
| Storage space for gas cylinder (filling weight in kg) | 2 x 11kg |
| Sleeping places | 2 - 5 OPT |
| Bed conversion seating group (cm) | 200 x 60 OPT |
| Pull-down bed (cm) | 200 x 140 - 123 OPT |
| Fridge (volume freezer) (l) | 137 (15) |
| Single Beds (cm) | 200 x 80 / 195 x 80 |
| Bed conversion from single to double bed (cm) | 200 - 195 x 210 |
| Chassis & Engine Fiat |
|---|
| FIAT 2,2 l Multijet - 103 kW (140 hp) - EURO 6e - manual transmission |
| Start & stop function |
| Broad gauge chassis |
| Disc brakes, rear and front axle stabiliser, convection heating, tachometer |
| Power steering, height-adjustable headlights, immobiliser, 3-point seat belt with seat belt reminder (for captain chairs) |
| ABS, EBD (electronic brake force distribution), ESP (electronic stability program) |
| ESC (electronic stability control) including ASR (anti-slip regulation) and hillholder (hill start assistant) |
| CWA (crosswind assistant) and PCB (multi-collision brake) |
| Traction+, hill descent control |
| Comfortable driving characteristics thanks to rear and front axle stabilisers |
| Cruise control |
| Front-wheel drive |
| Electric and heated exterior mirrors |
| Daytime running lights integrated in the standard headlights |
| Black frame headlights |
| Fog lights |
| FIAT 16" alloy wheels black matt light chassis |
| Front bumper painted in body color |
| Skid plate black |
| Driver and passenger airbag |
| Dashboard with applications (techno-trim) |
| Manual cab air conditioning |
| Electric windows and central locking in the cab |
| Steering wheel and gear knob in leather |
| Steering wheel remote control for radio |
| Radio preparation with speakers |
| DAB radio antenna |
| Cup holder in the center console |
| USB socket (double) |
| Fix & Go kit breakdown set |
| Driver / passenger rotatable seat in living area fabric with double armrests |
| Height and tilt adjustment for the driver‘s and passenger seat |
| 60l fuel tank |
| Corigon Exterior equipment |
|---|
| 7 year tightness guarantee |
| Outer roof and rear skin made from durable GRP |
| Floor with GRP cover |
| Roof thickness 33 mm, wall thickness 34 mm, floor thickness 42 mm |
| Side wall outer skin made of smooth aluminum sheet |
| Elegant three-part rear light bracket with integrated lights |
| Cab curtain |
| Panorama roof hood over seating area |
| Clear glass roof hood 40x40 |
| Double glazed hinged window with blackout blind and flyscreen (except for bathroom) |
| Large body door with window and ergonomic handle position inside and outside |
| Fly screen door |
| Coupé entry |
| Generous rear garage with lowered frame, securing eyes and interior lighting (depending on the model) |
| Second garage door (size depending on model) |
| Rear garage payload up to 150 kg |
| Corigon Interior equipment |
|---|
| Ergonomically shaped upholstery for more seating comfort |
| Table extension |
| High quality mattresses with increased comfort |
| Removable and washable mattress covers |
| Bed conversion from single bed to double bed |
| High quality rear bed application with LED lighting |
| Wooden slatted frame in all fixed beds for increased comfort |
| Generous storage spaces and storage options |
| Overhead lockers with soft-close system |
| Mirror and coat hooks |
| Magnolia, walnut and white furniture finish |
| Bernina floor |
| Installation & Technology |
|---|
| LED lighting integrated under the overhead lockers |
| Indirect LED lighting in the room divider |
| LED outdoor light |
| LED living room light |
| Powerful, maintenance-free body battery (95 Ah) |
| On-board control panel |
| Electric charger for body and vehicle battery 12 V / 22 A |
| CEE external connection for 230 V with automatic circuit breaker |
| FI circuit breaker |
| USB socket |
| Socket in the kitchen block |
| Socket in the garage |
| Heating / Gas Supply |
|---|
| Storage space for 2 gas cylinders with max. 11 kg filling weight |
| Combi 6 gas heating with integrated 10 l boiler |
| Kitchen / Water Supply |
|---|
| Ergonomically arranged kitchen with a generous work surface |
| Spacious drawers with servo-soft in the kitchen block |
| Indirect LED lighting under the worktop |
| 3-burner gas cooker with 12 V ignition and glass cover |
| Large round sink made of stainless steel with cover |
| Flex rail system with 2 hooks |
| Water tank including boiler 110 l, waste water tank 90 l |
| Refrigerator 137l with 15l freezer compartment |
| Bin |
| Bathroom |
|---|
| Vario-bathroom |
| Cassette toilet with electric pump and swivel seat |
| Shower room cladding |
| Wooden slatted shower |
| Roof hood with integrated flyscreen |
| Large mirror surfaces |
| Clothes rail in the wet room |
| Textile combination |
|---|
| Upholstery Montagna (grey) |
| Chassis & Engine Fiat |
|---|
| Fiat Ducato 2,2 l Multi-Jet - 103 kW | 140 hp - automatic transmission (light chassis) |
| Fiat Ducato 2,2 l Multi-Jet - 132 kW | 180 hp - automatic transmission (light chassis) |
| Increase of load capacity |
|---|
| Weight increase to 3,650 kg (without changing the chassis) |
| Corigon Exterior equipment |
|---|
| Rear styling panels |
| Framed window |
| Insulated waste water tank |
| Cab sun roof |
| Corigon Interior equipment |
|---|
| Bed conversion in the seating area (single bed) |
| Electric lift-up bed |
| 5th seat on the side bench with seat belt (against the direction of travel) |
| Carpet (living area) |
| Isofix child seat attachment for rear seat |
| Gas oven |
| Installation & Technology |
|---|
| Combi 6 E heater (with electric immersion heater) |
| 12 V TV pre-cabling including flat screen holder |
| Cable preparation for reversing camera |
| Cable preparation for solar system |
| Cable preparation for rooftop air conditioner |
| Packages |
|---|
| Travel+ Pack |
| Textile combination |
|---|
| Upholstery Tropea (beige) |
| Others |
|---|
| Registration documents |
